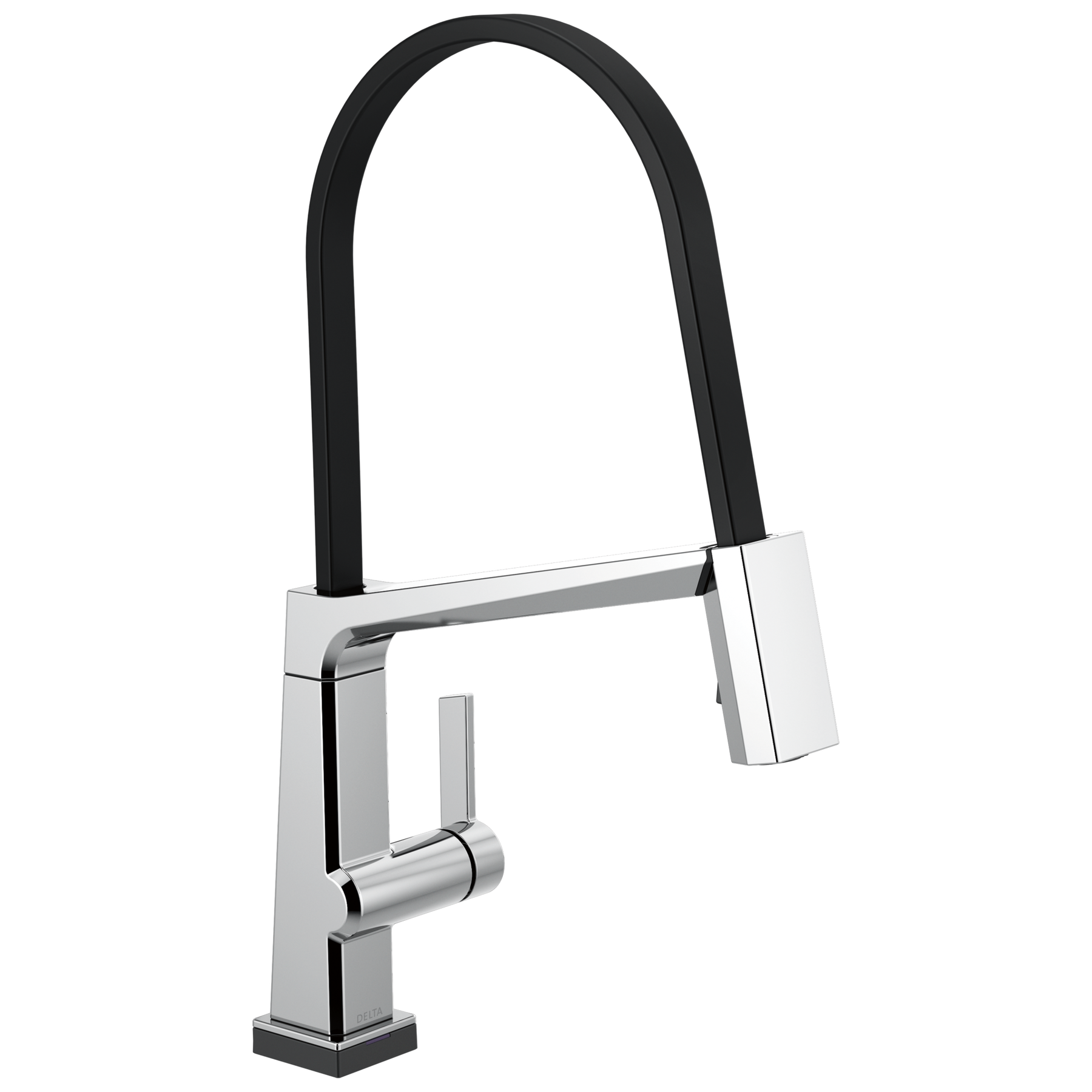

Single Handle Exposed Hose Kitchen Faucet with Touch<sub>2</sub>O Technology in Chrome

Model#: 9693T-DST
Single Handle Exposed Hose Kitchen Faucet with Touch<sub>2</sub>O Technology in Chrome
Model#: 9693T-DST
List Price: $1,16470
PRODUCT FEATURES
The confident slant of the Pivotal® Collection makes it a striking addition to your kitchen’s contemporary geometry for a look that makes a statement. Touch it on. Touch it off. Whether you have two full hands or 10 messy fingers, Delta® Touch2O® Technology helps keep your faucet clean, even when your hands aren’t. A simple touch anywhere on the spout or handle with your wrist or forearm activates the flow of water at the temperature where your handle is set. The Delta TempSense™ LED light changes color to alert you to the water’s temperature and eliminate any possible surprises or discomfort. Delta® MagnaTite® Docking uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Electronic parts are backed by our 5-year electronic parts warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
  • Exposed hose swivels at spray wand and hub to prevent kinking and enhance flexibility

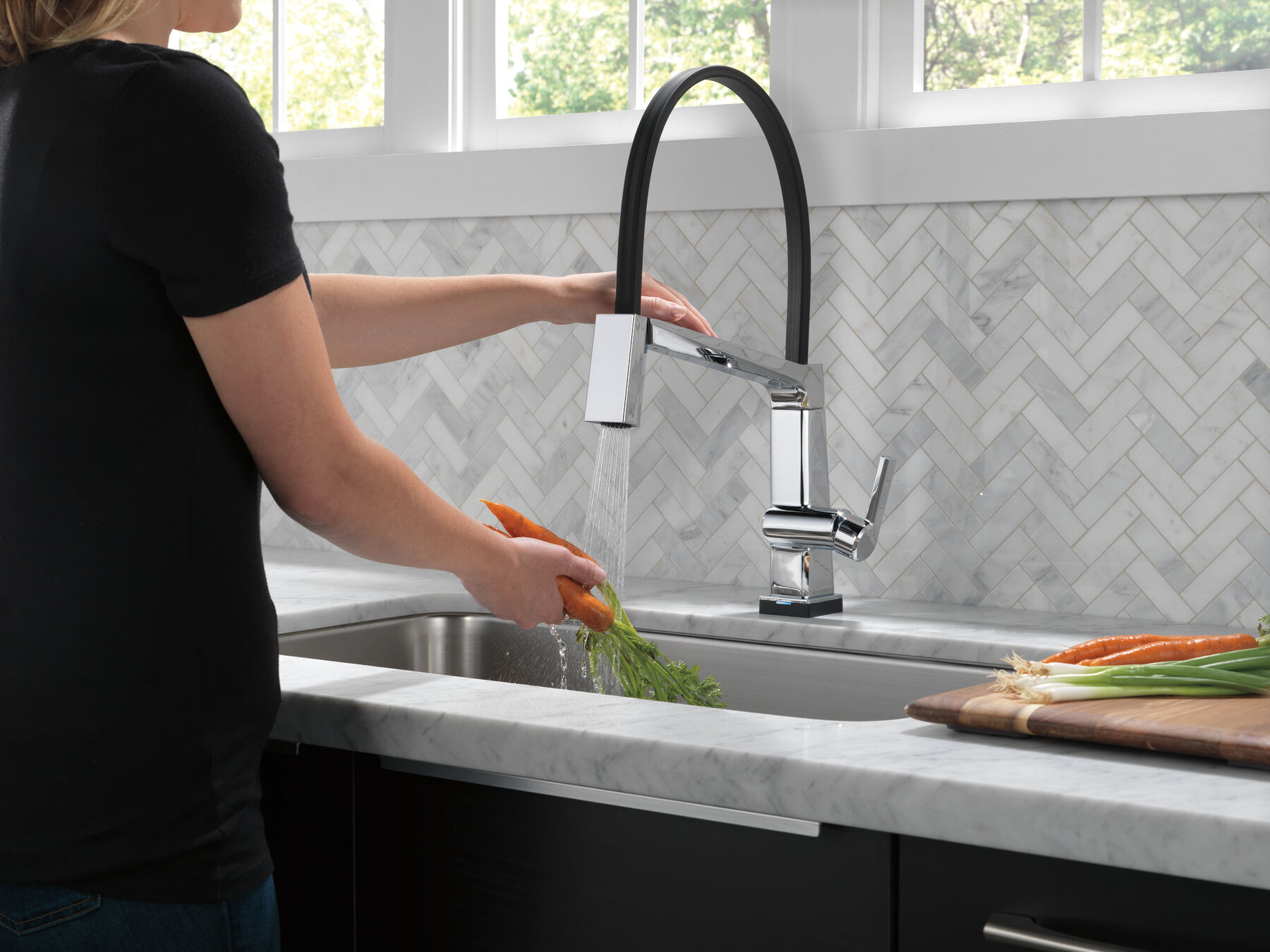

  • With Touch2O® Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
  • Helps keep your faucet cleaner, because washing the mess off your hands shouldn’t involve making a mess of your faucet
  • LED light signals blue when touch mode is active and flash red when batteries are running low
  • Automatic water flow shut-off after four minutes helps conserve water

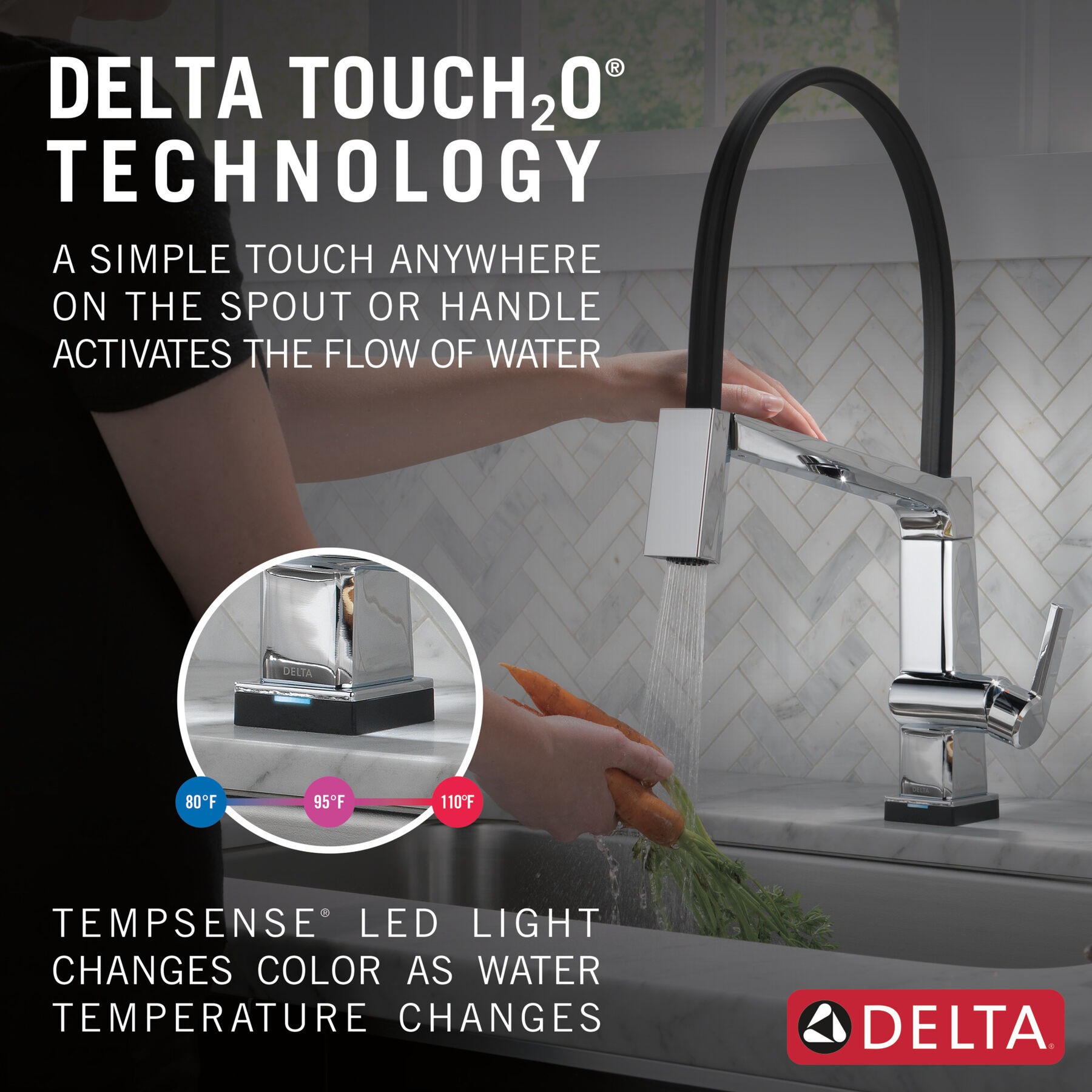

  • Integrated TempSense™ LED light shows water temperature, changing from blue to magenta to red as temperature increases
  • Battery operated 6 AA (included) with a battery life of approximately 1 year or 6 C (not included) with a battery life of approximately 3 years
  • Intuitive Touch2O® Technology can sense the difference between a touch and a grab, reducing the chances of false activation
  • Optional A/C adapter EP102157 may be ordered separately
  • MagnaTite® Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesn’t droop over time
  • DIAMOND™ Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
  • Fits 1-hole installations

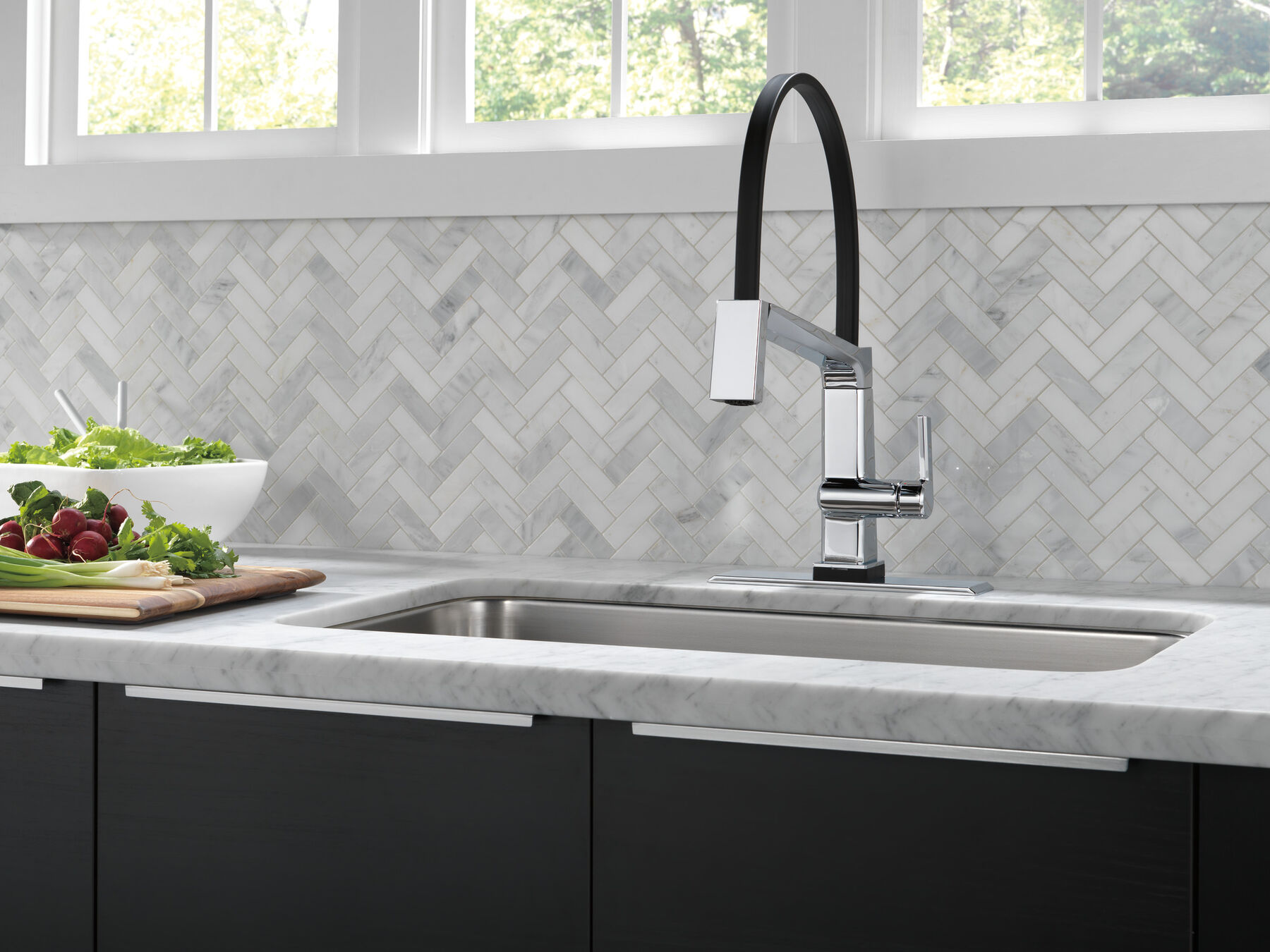

  • Optional escutcheon available for 3-hole installations (purchase separately)
  • ADA Compliant

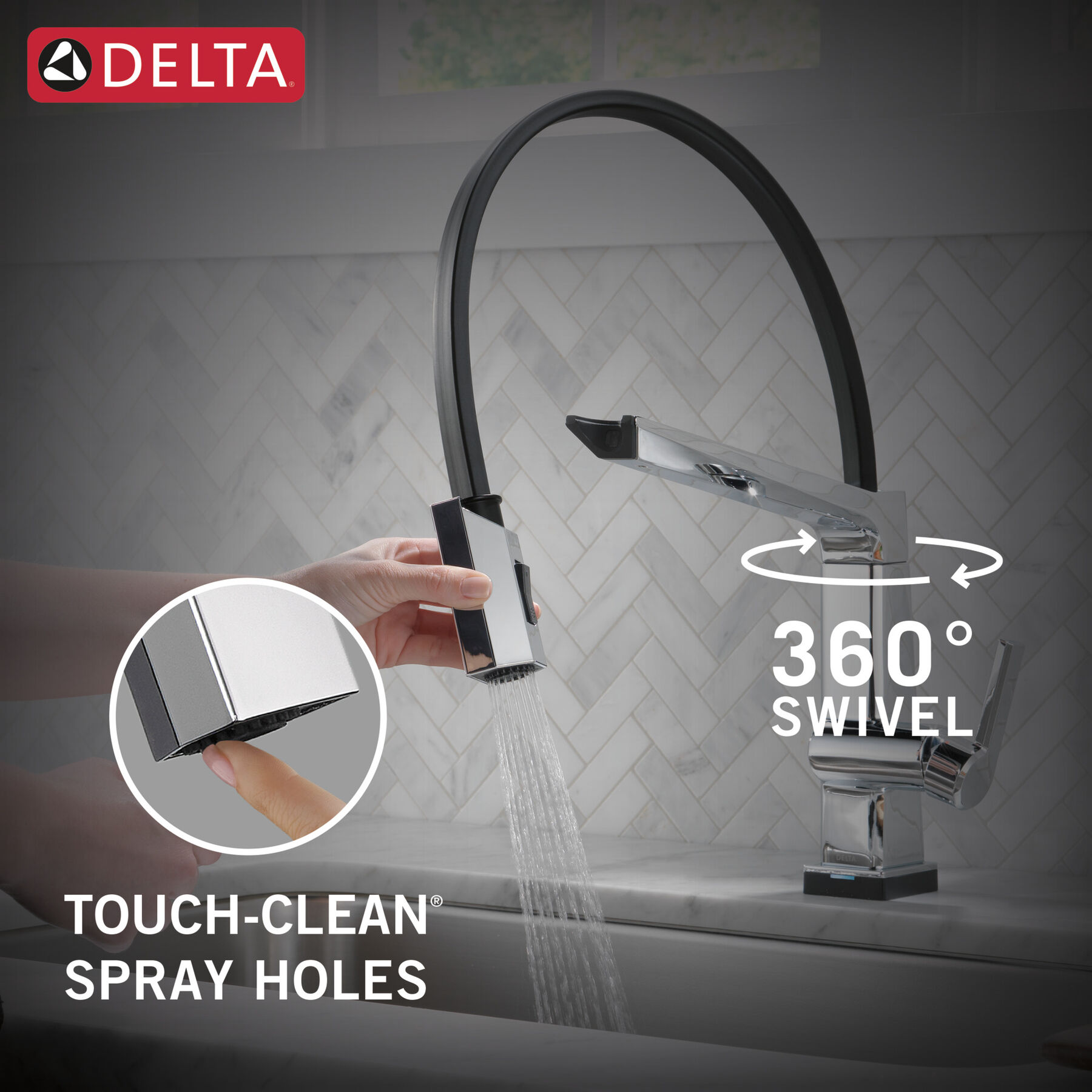

  • High-arc pull-down swivels 360degrees

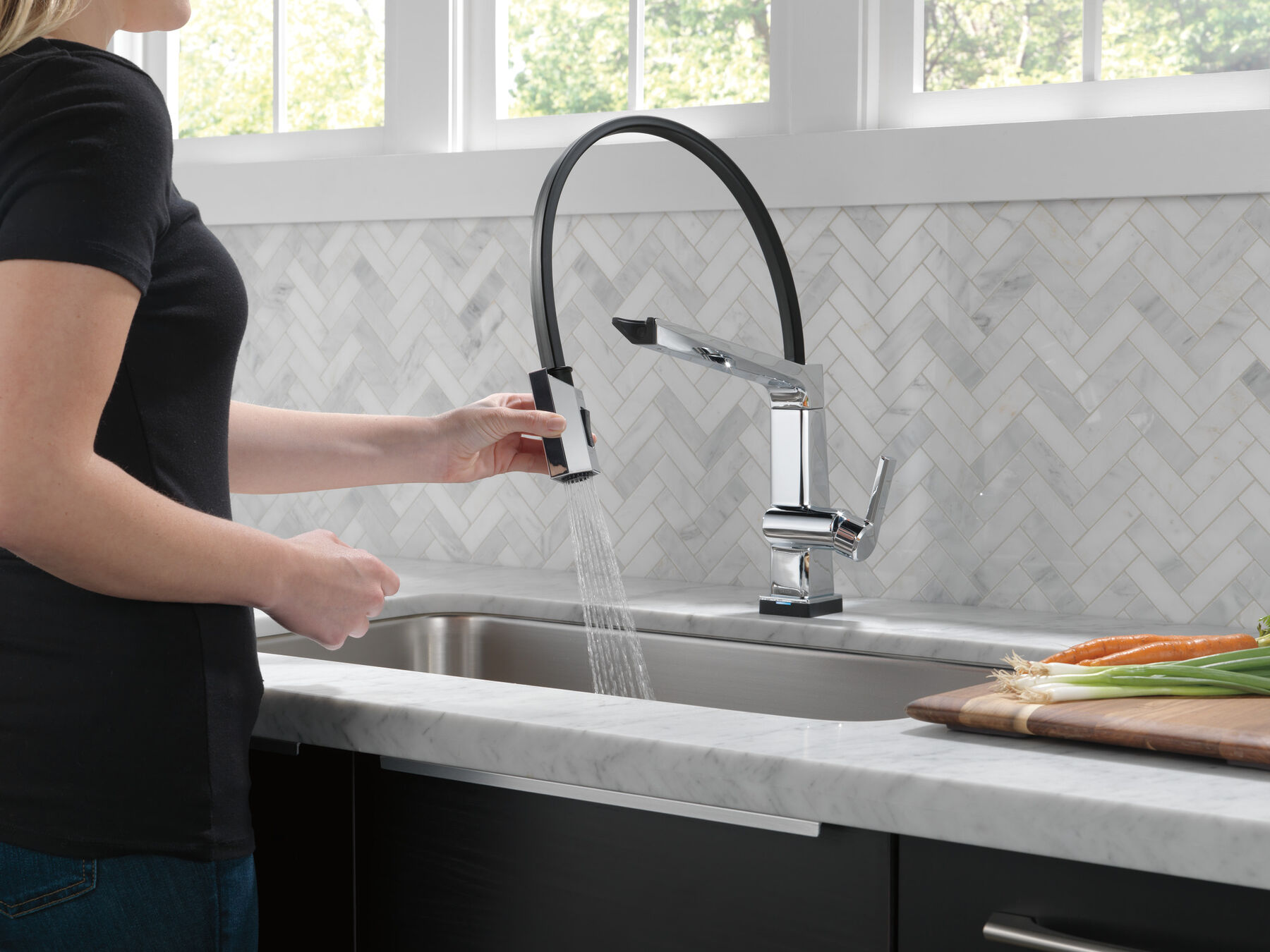

  • Free-moving hose weight for smooth operation of the pull-down wand
  • 2.5 in. maximum deck installation thickness
Technology and Special Features
ADA Compliant
No-Lead Compliant
VoiceIQ® Compatible

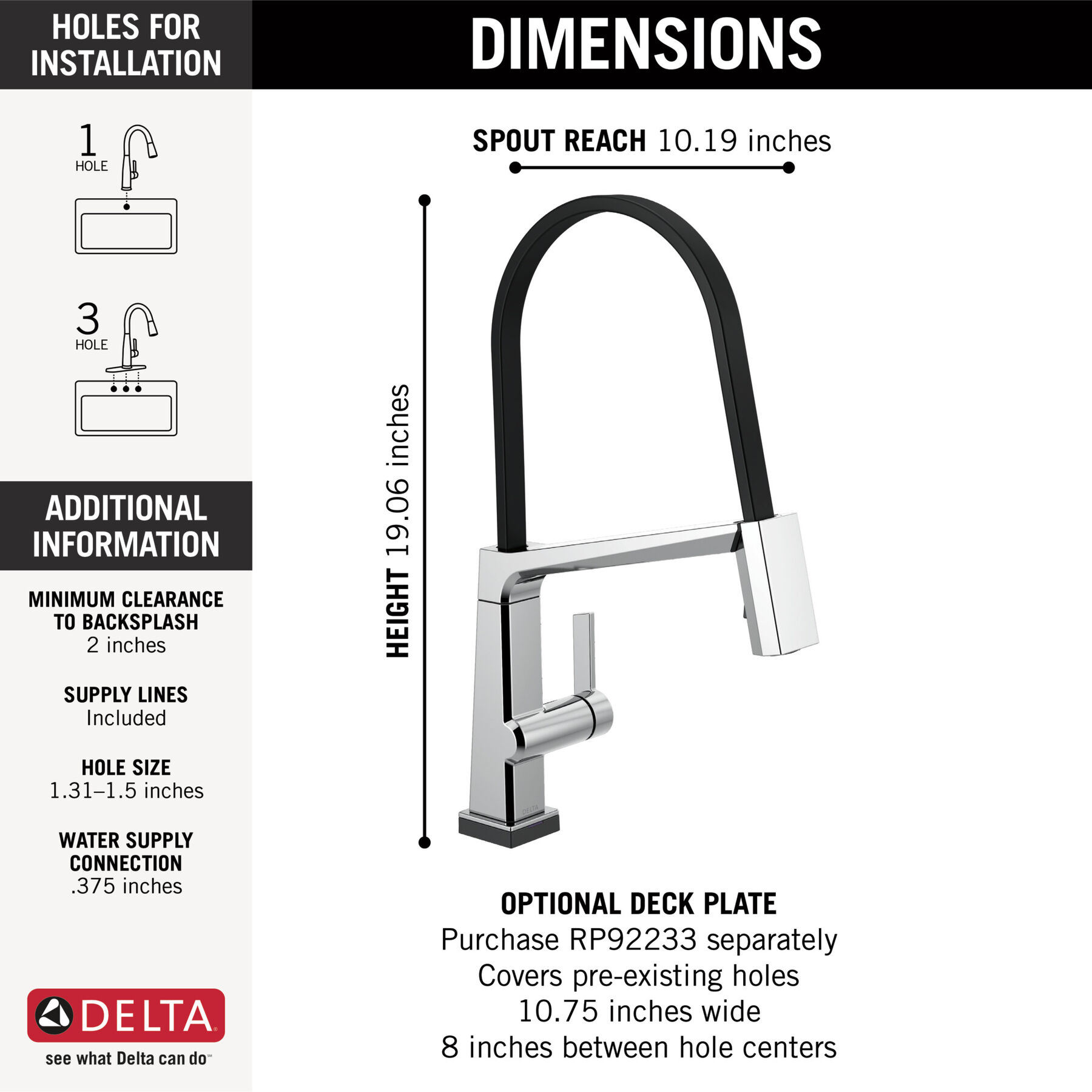

Documents & Specs
Installation Information
1 or 3-hole 8" installation
1 or 3-hole 8" installation
Overall Length (inches) :
7-1/8
Overall Height (in.) :
19-1/16
Wattage :
0
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

PART LIST

PART LIST

Discontinued
Discontinued
Image-EP73954
Discontinued

Delta®

Delta® A/C Power Supply

List Price: $63.80
Standard Finishes

EP73954

4.35 37
Image-RP37490

Delta®

Delta® Stabilization Plate

List Price: $24.55
Online Price: $19.64
Free Ground Shipping All Orders $49+
Standard Finishes

RP37490

3.20 5
Image-Master-RP93283

DELTA

DELTA Bonnet Cap and O-Ring

List Price: $12.40 - $18.85
Free Ground Shipping All Orders $49+
Standard Finishes

RP93283

Image-RP93410

DELTA

DELTA Filter

List Price: $15.90
Online Price: $12.72
Free Ground Shipping All Orders $49+
Standard Finishes

RP93410

Image-Master-RP93282

DELTA

DELTA Handle, Set Screw and Button

List Price: $50.50 - $94.65
Free Ground Shipping All Orders $49+
Standard Finishes

RP93282

Image-Master-RP93281

DELTA

DELTA Set Screw and Button

List Price: $17.05 - $31.40
Free Ground Shipping All Orders $49+
Standard Finishes

RP93281

Image-Master-RP93280

Pivotal®

Pivotal® Single Hole Escutcheon and Gasket

List Price: $29.55 - $42.60
Free Ground Shipping All Orders $49+
Standard Finishes

RP93280

Image-RP93285

DELTA

DELTA Retainer

List Price: $15.00
Online Price: $12.00
Free Ground Shipping All Orders $49+
Standard Finishes

RP93285

Image-EP100855 Secondary Image-EP100855

DELTA

DELTA VoiceIQ® Module

List Price: $200.15
Online Price: $160.12
Free Ground Shipping All Orders $49+
Standard Finishes

EP100855

4.30 99
Image-RP60911

Delta®

Delta® Quick-Connect Hose Clip

List Price: $15.80
Online Price: $12.64
Free Ground Shipping All Orders $49+
Standard Finishes

RP60911

2.64 11
Image-RP13938

Delta®

Delta® O-Ring

List Price: $6.90
Online Price: $5.52
Free Ground Shipping All Orders $49+
Standard Finishes

RP13938

4.50 2
Image-Master-RP91902

Pivotal®

Pivotal® Valve Cartridge

List Price: $87.35
Online Price: $69.88
Free Ground Shipping All Orders $49+
Standard Finishes

RP91902

Image-RP100167

DELTA

DELTA Spacer

List Price: $15.15
Online Price: $12.12
Free Ground Shipping All Orders $49+
Standard Finishes

RP100167

Image-EP102157 Secondary Image-EP102157

DELTA

DELTA A/C Power Supply

List Price: $66.75
Standard Finishes

EP102157

4.12 16
Image-Master-RP92603

DELTA

DELTA Spout Assembly - Ribbon

List Price: $390.80 - $484.65
Free Ground Shipping All Orders $49+
Standard Finishes

RP92603

Image-RP92605

DELTA

DELTA Indicator Base Assembly

List Price: $46.35
Online Price: $37.08
Free Ground Shipping All Orders $49+
Standard Finishes

RP92605
