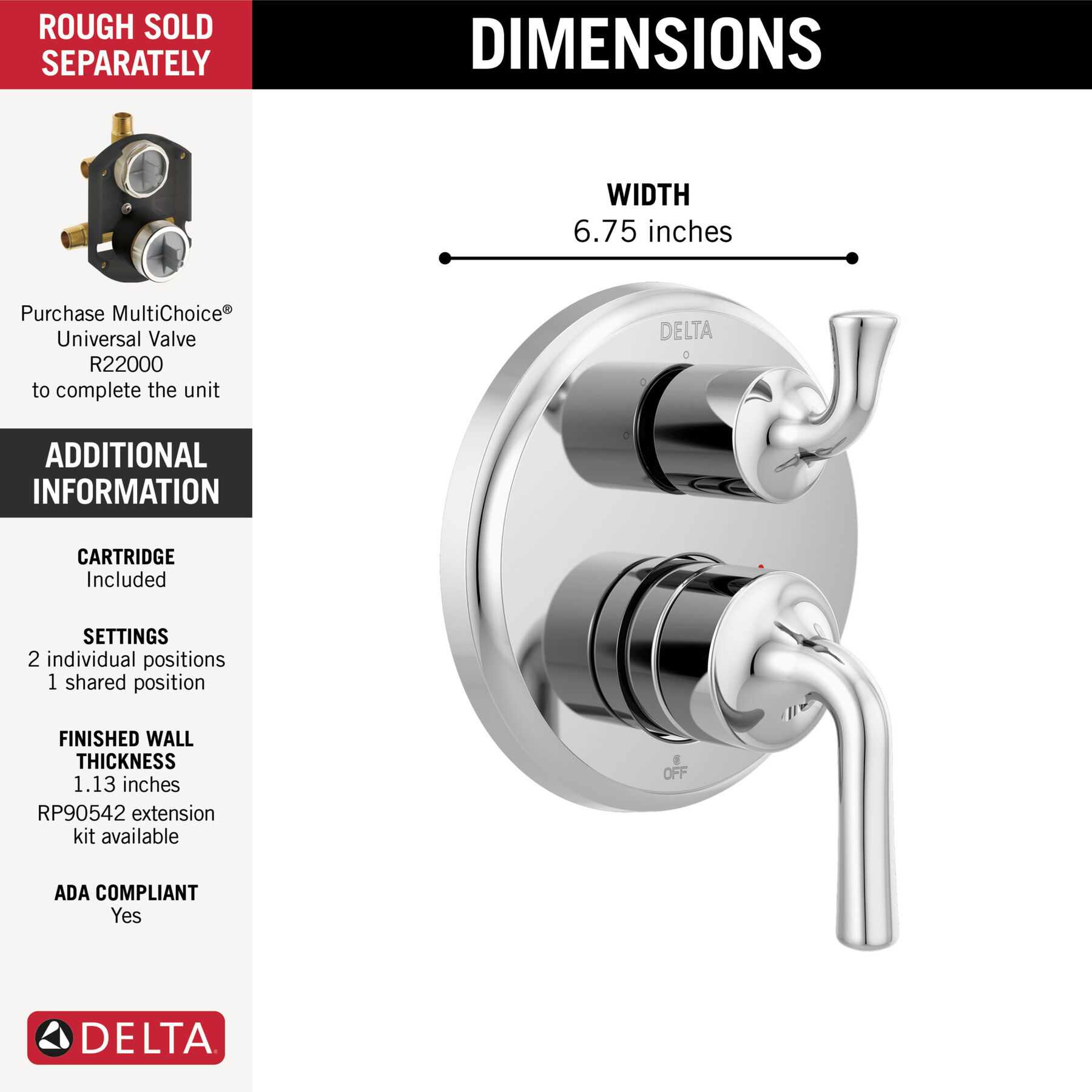

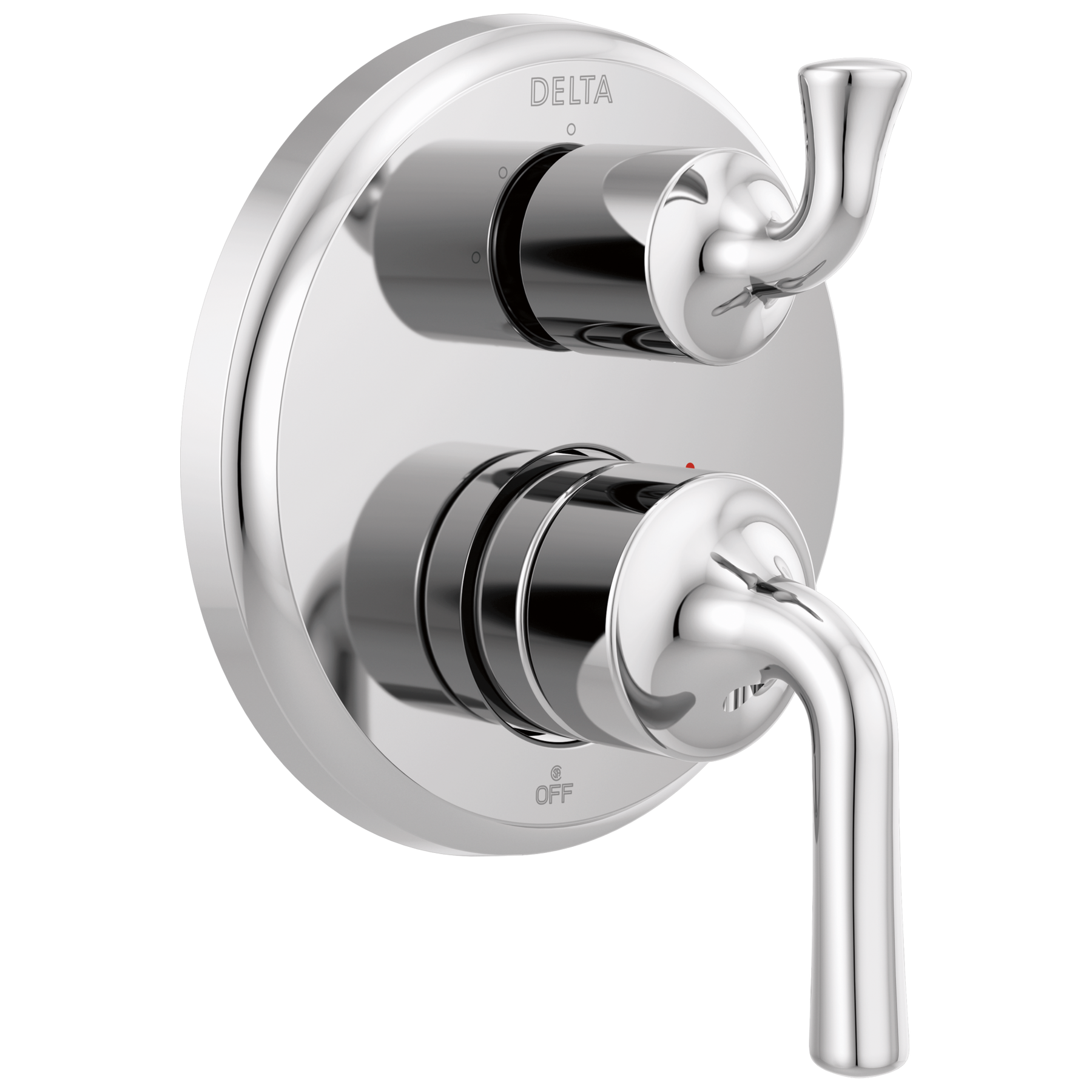

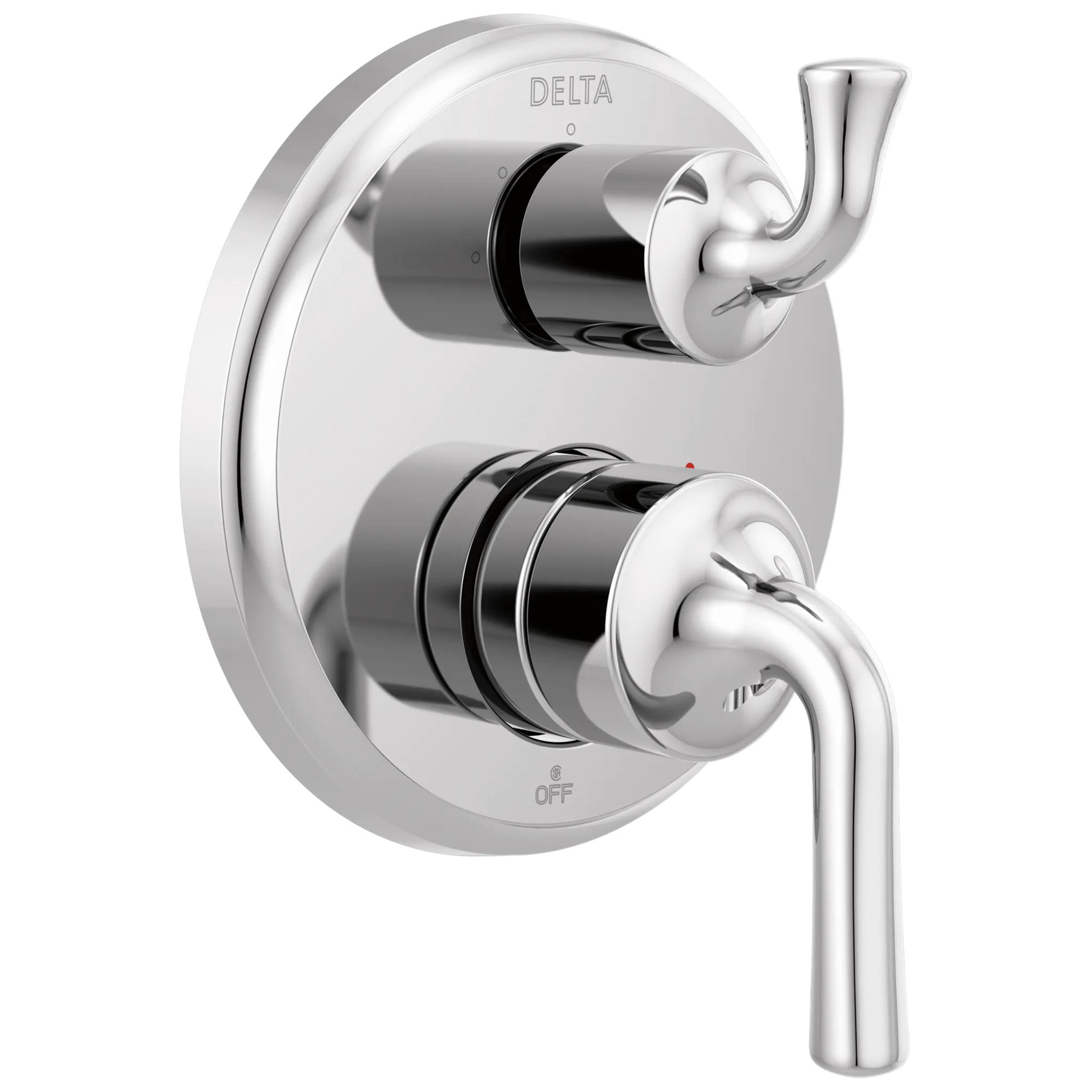

Two-Handle Monitor® 14 Series Valve Trim with 3-Setting Integrated Diverter in Chrome
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Recommended rough-in kit R22000
- Three function shower diverter
- 2 individual positions, 1 shared positions
- Top handle controls diverter functions
- Bottom handle controls on / off and adjusts temperature
- Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
- Main control utilizes single-function pressure balanced cartridge
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120° Maximum rotation
- Red/Blue indicator markings
- Cartridges included
- Standard installation allows up to 1-1/8 in. finished wall thickness
- ADA Compliant
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
Integrated Diverter
Monitor®
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
PART LIST
Delta®
Delta® Cartridge - 3-Setting Diverter
RP51918
Delta®
Delta® Set Screw - Beverage
RP64871
Delta®
Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared
RP71717
DELTA
DELTA Diverter Handle, Set Screw and Button
RP101547
DELTA
DELTA Valve Seal - Integrated Div
RP100386
Delta®
Delta® Spacer
RP29569
Tetra®
Tetra® Trim Sleeve
RP84924CZPR
Delta®
Delta® Seats & Springs (2 ea)
RP4993
Cassidy®
Cassidy® Escutcheon Assembly - Integrated Diverter
RP84928
DELTA
DELTA Handle, Set Screw and Button
RP101548
DELTA
DELTA 14S 6F INTEGRATED DIVERTER ESCUTCHEON
RP100946
DELTA
DELTA Trim Sleeve - Diverter
RP84932PCPR
DELTA
DELTA 14S 3F INTEGRATED DIVERTER ESCUTCHEON
RP100945
Delta®
Delta® Extension Kit - MultiChoice® Integrated Diverter - 24 Series
RP90542
