Urban Arzo

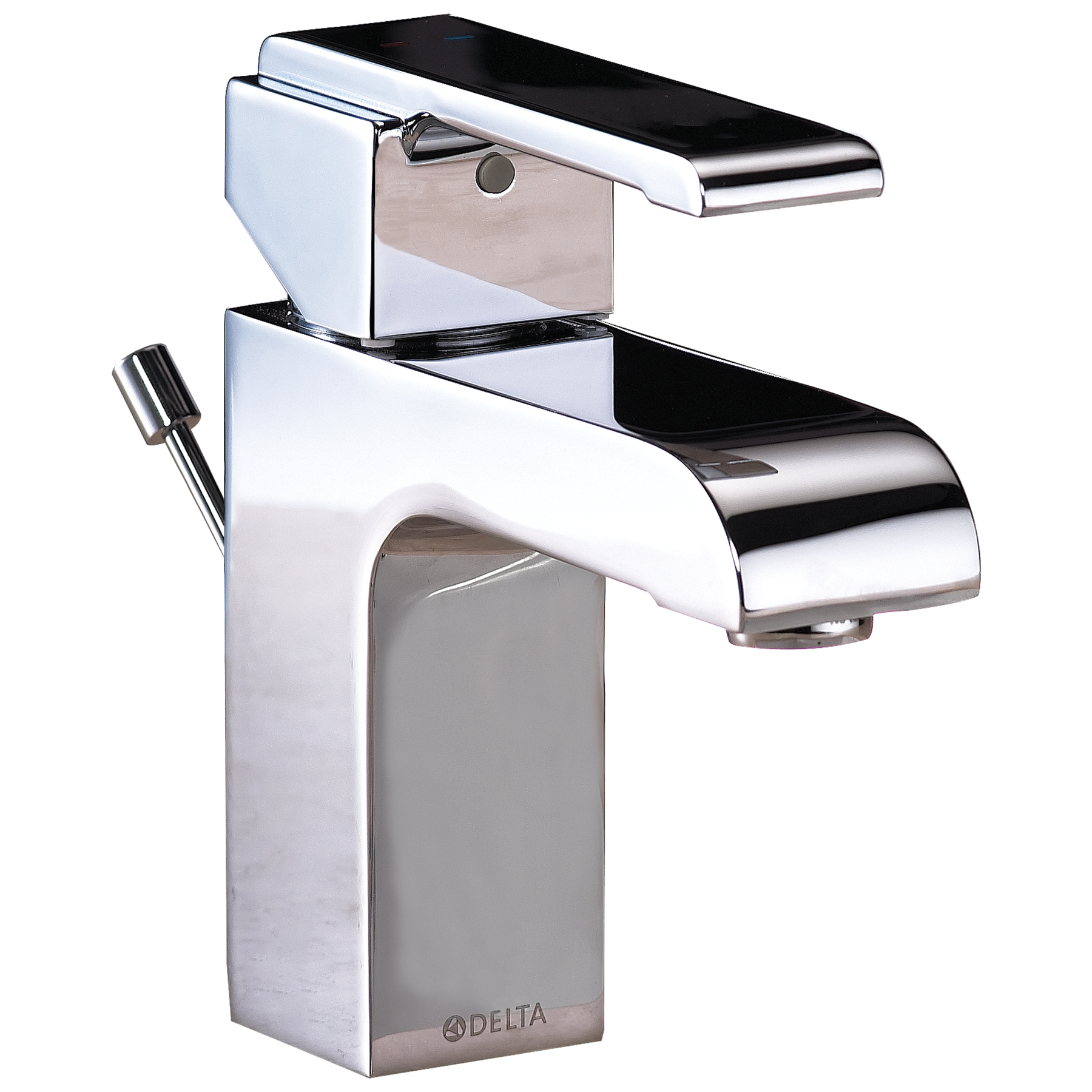

Single Hole Bathroom - Includes Pop-Up Ceramic Valve System in Chrome
Model#:
26025
Image Thumbnail, click to view zoomed product image
null
null
PRODUCT FEATURES
- Metal pop-up
- Single Handle Lavatory Faucet
- 1-hole installation
- Rigid spout
- 4 1/4" (109.0 mm) long, 6 1/2" (165.0 mm) high
- Metal lever handle
- G 1/2" (12.7 mm) Connection
- 3 3/8" (86.0 mm) from deck to spout
- 1 23/32" (43.656 mm) max. deck thickness
- Hot/cold indicators
- Ceramic Valve System
- 35.4 LBS/16.1 KG
- 2.0 gpm @ 60 psi, 7.6 L/min @ 414 kPa
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Single hole installation
Connection Type :
Universal fittings
Flow Rate :
2.2 gpm @ 60 psi, 8.3 L/min @ 414 kPa
Overall Height (in.) :
8-1/8
Valve Type:
Ceramic valve
