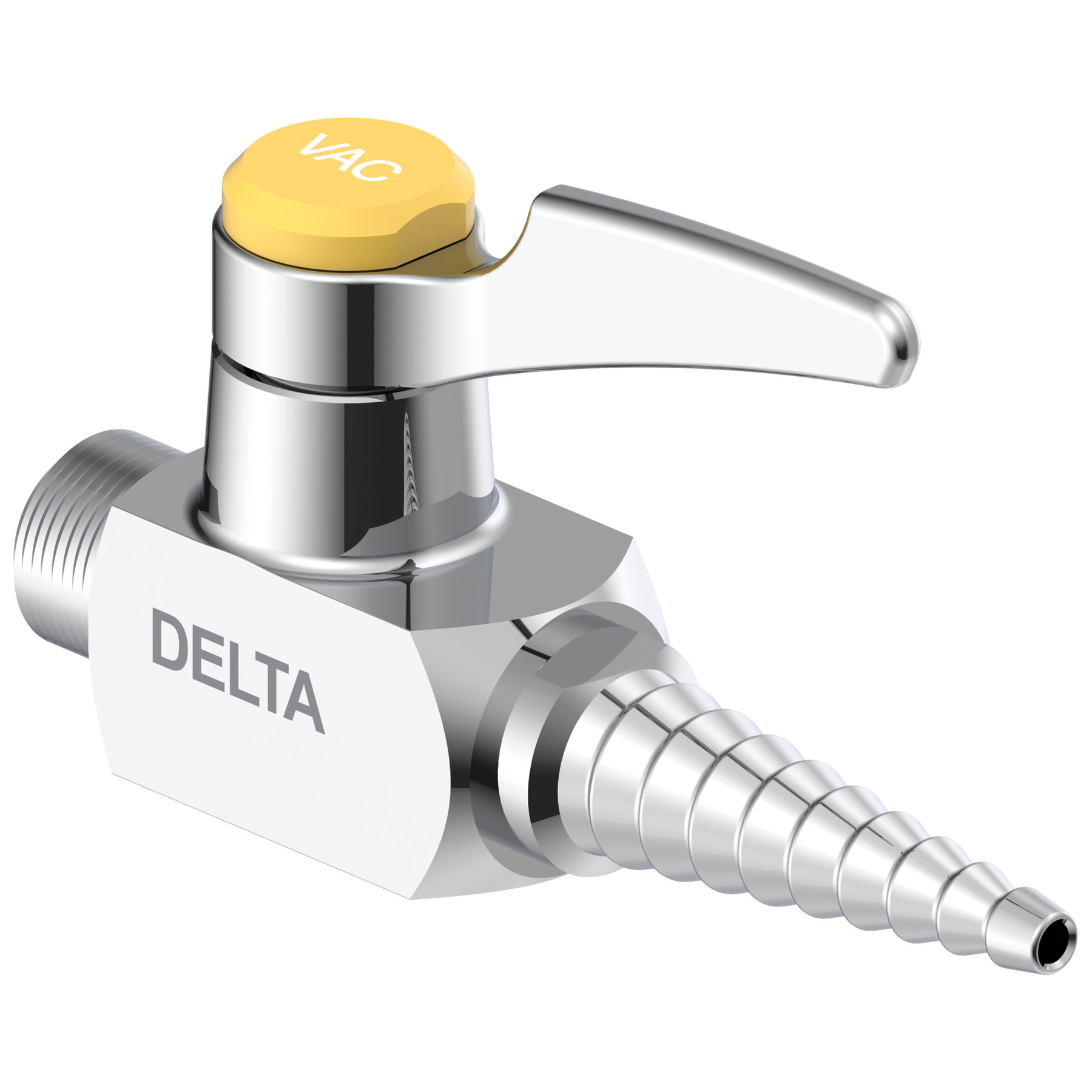

Wall-mount Ball Valve Hose Cock in Chrome
Model#:
W6200VAC
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
This ball valve hose cock feautres a floating ball-type design with 3/8 in. M.I.P. inlet. It has a removable universal 10 serration vandal resistant nozzle, with 3.2 mm (1/8 in.) outlet, a forged brass vandal resistant handle, and O-ring seals. A check piston is located in th enozzle. The colored index button can be suited to the desired service. The Delta Commercial offering goes beyond providing exceptional Commercial-grade performance with products that reflect the personality of the individual institution. All Delta Commercial products are backed by the industry's best 5-year limited warranty.
- Ball Valve Hose Cock
- 3/8" MIP inlet
- No shank
- Non-removable lever handle
- Check valve to prevent contamination of service lines and valve sealing surfaces
- Nozzle removable with flat on one side
- Meets ADA prescribed 5 lb. force pressure requirement
- Life cycle tested to 100,000 cycles
- Vacuum valve supplied with a corrosion resistant finish ball and viton O-rings for improved durability
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Wattage :
0
Mounting:
Wall Mount
Valve Type:
NA
