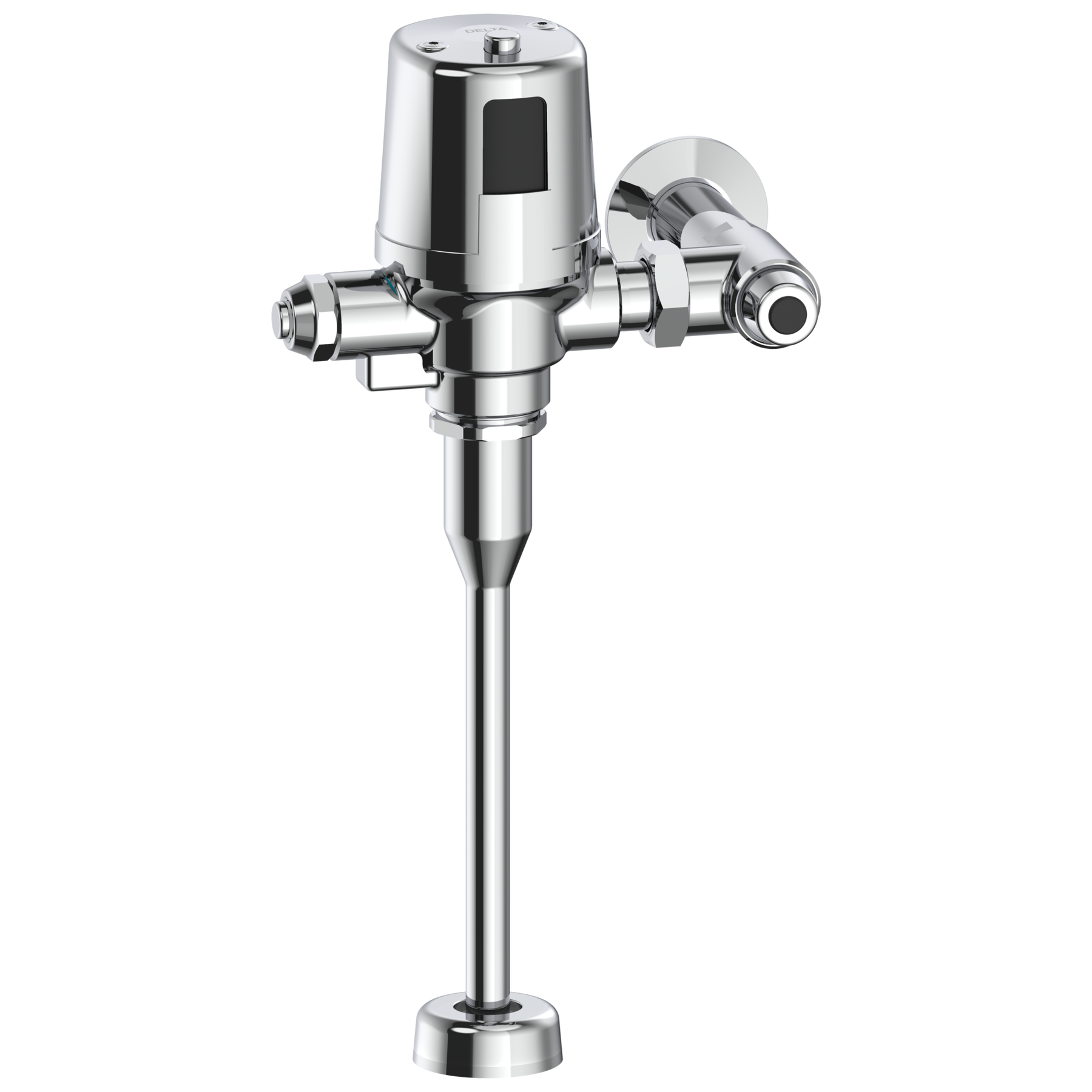

Electronic Exposed Urinal Flush Valve with Mechanical Manual Override - Battery Operated in Chrome
- Battery flush valve for 3/4" top spud flushing urinal with H2Optics® sensor on valve - maximum 13" height
- Polished chrome plated vandal resistant metal cover
- Mechanical manual override button
- EZ Adjust® system allows flush volume adjustments with a simple turn of a screw.
- Electronic operated non-hold-open metal override button with 5 second lockout
- Scratch resistant replaceable lens window
- Set-up sensor range adjustment indicator lights
- Infrared sensor range adjustment of 8-24"
- Battery strength indicator
- Teck® chloramine resistant diaphragm for smooth operation
- Vacuum breaker
- 3/4” copper sweat inlet
- Field adjustable from 0.125-1.0 gpf (0.47-3.78 lpf) and factory set to 0.5 gpf (1.9 lpf)
- Copper Defense™ conversion kits with CuVerro Shield™ bactericidal copper alloys for electronic and mechanical manual override buttons available (061391A) - Canada Only
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
Water-Efficient
H2Optics®
Product Support, Repair Parts & Technical Specifications
Installation Information
INSTALLATION SUPPORT
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
